698-2700MHz 11dBi Long Range Omnidirectional HDTV Antenna Electric Welding 10W

Product Categories

SHENZHEN ZD TECH CO., LTD

Contact Now

Brand Name : ZD

Model Number : ZD-D-698/2700-11/13

Certification : RoHS

Place of Origin : china

MOQ : Negotiable

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 10000pcs one week

Delivery Time : 5-8 work days

Packaging Details : Standard exporting cartons or as customer required

Frequency Range : 698-2700mhz

Gain : 11-13dbi

VSWR : ≤2.0:1

Input Impedance : 50Ω

Polarisation : Linear

Feed power handling : 10W

Contact Now

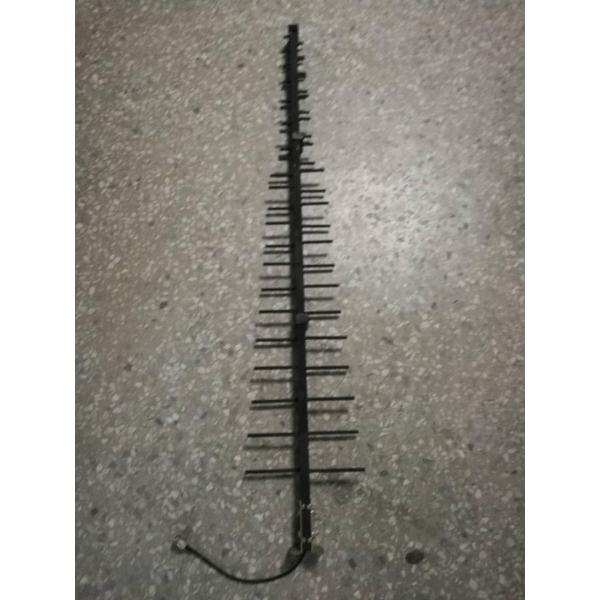

698-2700MHz 11dBi Directional Yagi Antenna Electric welding

Electrical Specifications
Frequency Range	698-960 MHz	1710-2700 MHz
Gain	11 dBi	13 dBi
VSWR	≤2.0:1
Polarization	Vertical
Front to Back Ratio	20 dB
Input Impedance	50 Ω
Feed power handling	10 W
E-Plane 3dB beamwidth	50°
H-Plane 3dB beamwidth	55°
Polarisation	Linear
Mechanical Specifications
Dimensions	110018060mm
Weight	1.29 kg
Mounting bracket	Stainless steel up to 60mm poles
Rated Wind Velocity	160 km/h
Operating Temperature	-20°C to +70 °C
Water Ingress Rating	IP65

698-2700MHz 11dBi Long Range Omnidirectional HDTV Antenna Electric Welding 10W
