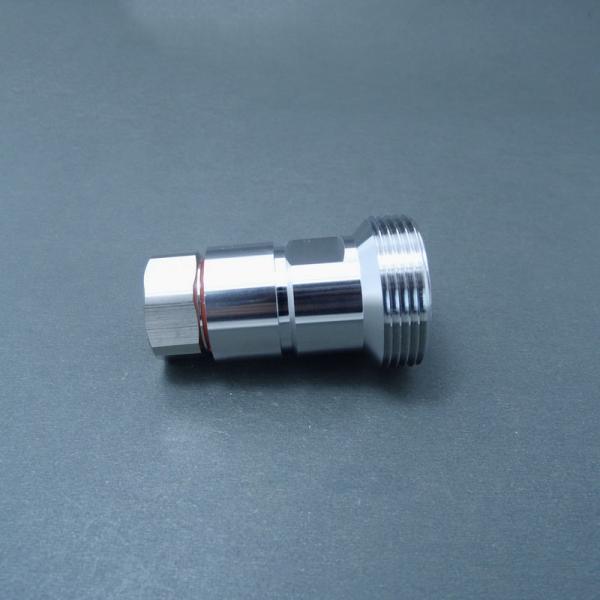

Jack Clamp RF Coaxial Connector 7/16 DIN Female Connector for 1/2'' Superflexible feeder Cable

Product Categories

SHENZHEN ZD TECH CO., LTD

Contact Now

Brand Name : ZD

Model Number : ZD-CN-DF-CF12S

Certification : RoHS

Place of Origin : CHINA

MOQ : Negotiable

Price : Negotiable

Supply Ability : 10000pcs per month

Frenquency : DC-3GHz

VSWR : 1.10:1

PIM3 : -155dBc

Material : Brass and

Impedance : 50Ohm

Connector type : Din Female Connector

Contact Now

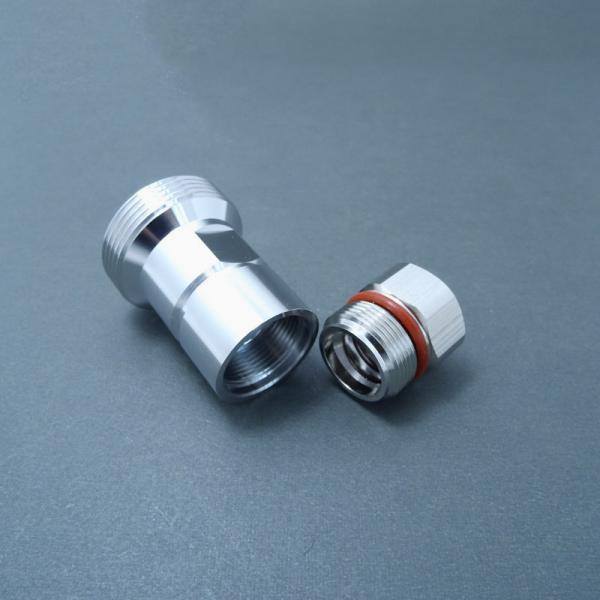

RF Coaxial Connector 7/16 DIN Female for 1/2'' Superflexible Cable
Model No.	ZD-CN-DF-CF12S
Interface	IEC 60169-4;DIN-47223;CECC-22190
Electrical
Characteristic Impedance	50ohm
Frequency Range	DC-3GHz
VSWR	≤1.20@DC-3000MHz
3rd Order IM (PIM3)	≤ -155dBc@2×20W
Dielectric Withstanding Voltage	≥4000V RMS,50Hz,at sea level
Dielectric Resistance	≥10000MΩ
Contact Resistance	Center Contact ≤0.4mΩ	Outer Contact ≤1 mΩ
Mating	*M291.5 threaded coupling**
Mechanical
Durability	Mating cycles ≥500
Material and Plating
Parts Name	Material	Plating
Body	Brass	Tri-Alloy(CuZnSn)
Insulator	PTFE	—
Inner Conductor	Phosphor Bronze	Ag
Gasket	Silicone Rubber	—
Cable Clamp	Brass	Tri-Alloy(CuZnSn)
Ferule	—	—
Environmental
Operating Temperature	-45 ℃-85 ℃
Weatherproof Rate	IP67
RoHs (2002/95/EC)	Compliant by exemption
Suitable Cable Family	Andrew Cable P/N FSJ4-50B and RFS Cable P/N:SCF12-50

Jack Clamp RF Coaxial Connector 7/16 DIN Female Connector for 1/2'' Superflexible feeder Cable
