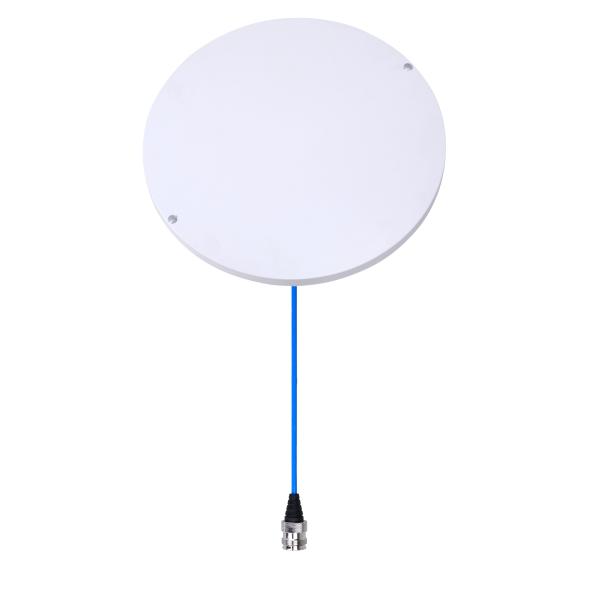

380 - 2700MHz Omni Ceiling Antenna , 0 / 2 / 4dBi N - Female

Features and Product Description

• Wideband Omni Antenna , coverage 380MHz - 2700MHz .

• Typically both used in indoor distribution of GSM/CDMA WIFI/3G/LTE 5G services.

• Low return loss,Stable performance.

• Compact, light-weight and easy to install.

• Supplied with mounting clamp.

• PIM<-140dBc @ 2x20 W.

Electrical Specifications

Item No.

ZD380-2700H04i360A

Frequency Range

MHz

380-520

698-960

1710-2700

Gain

dBi

2.0±1.0

2.2±1.0

4.5±1.0

Polarization

Horizontal

VSWR

≤2.5

≤2.0

≤2.0

PIM, 3rd Order, 2 x 20 W,

dBc

/

≤-140

≤-140

Input Power, maximum

watts

50

Impedance

ohm

50

Mechanical Specification

Connector Type

N-female

Size

mm

Φ266×18

Antenna Weight

kg

0.4

Mounting Kit

Ceiling, via hole (standard)

Radome Material and Color

ABS, White, RAL9003

Operational Temperature

oC

-55～60

Operational Humidity

%

< 95
